| MODEL | MD III 3.6 KW |
| RATED POWER | 3600VA / 3600W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC ( For Personal Computers ) / 90-280 VAC ( For Home Appliances ) |
| Frequency Range | 50 Hz / 60 Hz ( Auto sensing ) |
| OUTPUT | |
| AC Voltage Regulation ( Batt . Mode ) | 230VAC ± 5 % |
| Surge Power | 7200VA |
| Efficiency ( Peak ) | 90 % – 93 % |
| Transfer Time | 10 ms ( For Personal Computers ) / 20 ms ( For Home Appliances ) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger type | MPPT |
| Maximum PV Array Power | 5000W |
| MPP Range @ Operating Voltage | 60-450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 17 A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension , DxWxH ( mm ) | 119 x 313.6 x 457.5 |
| Net Weight ( kgs ) | 10 |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry – contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5 % to 95 % Relative Humidity ( Non – condensing ) |
| Operating Temperature | -10 ° C to 50 ° C |
| Storage Temperature | -15 ° C to 60 ° C |

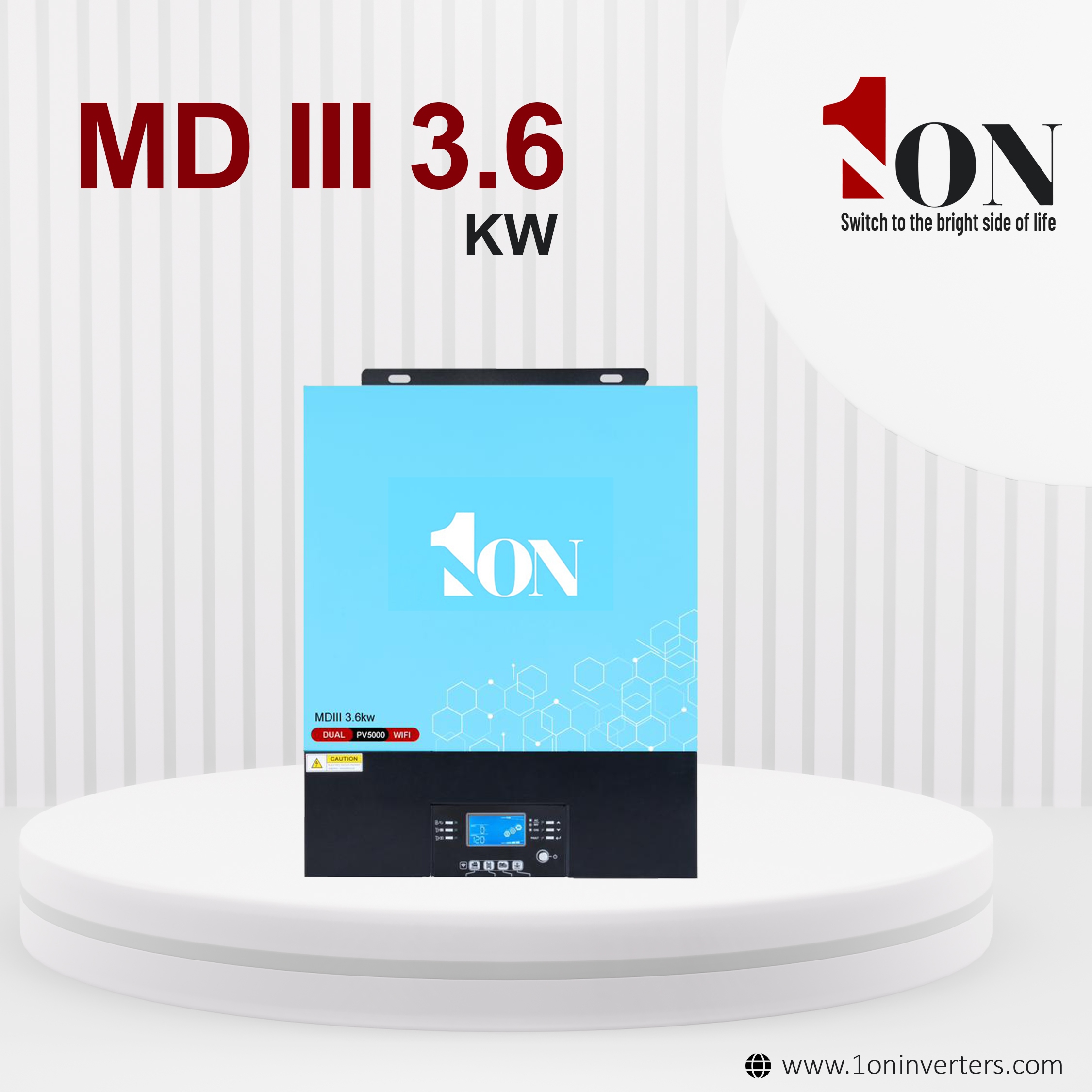

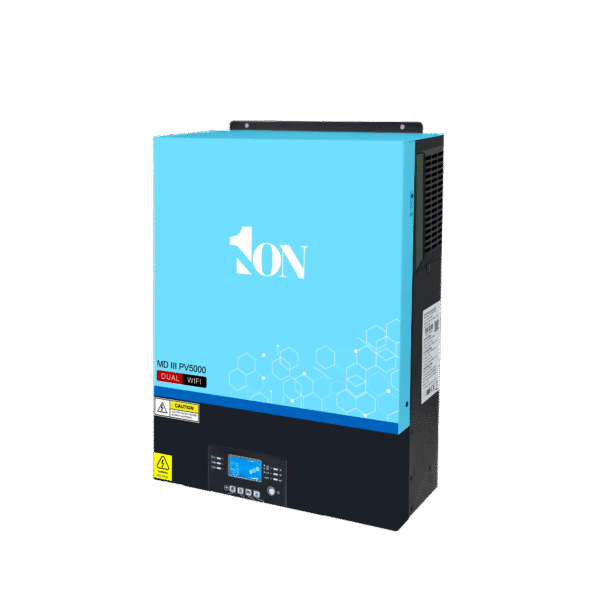

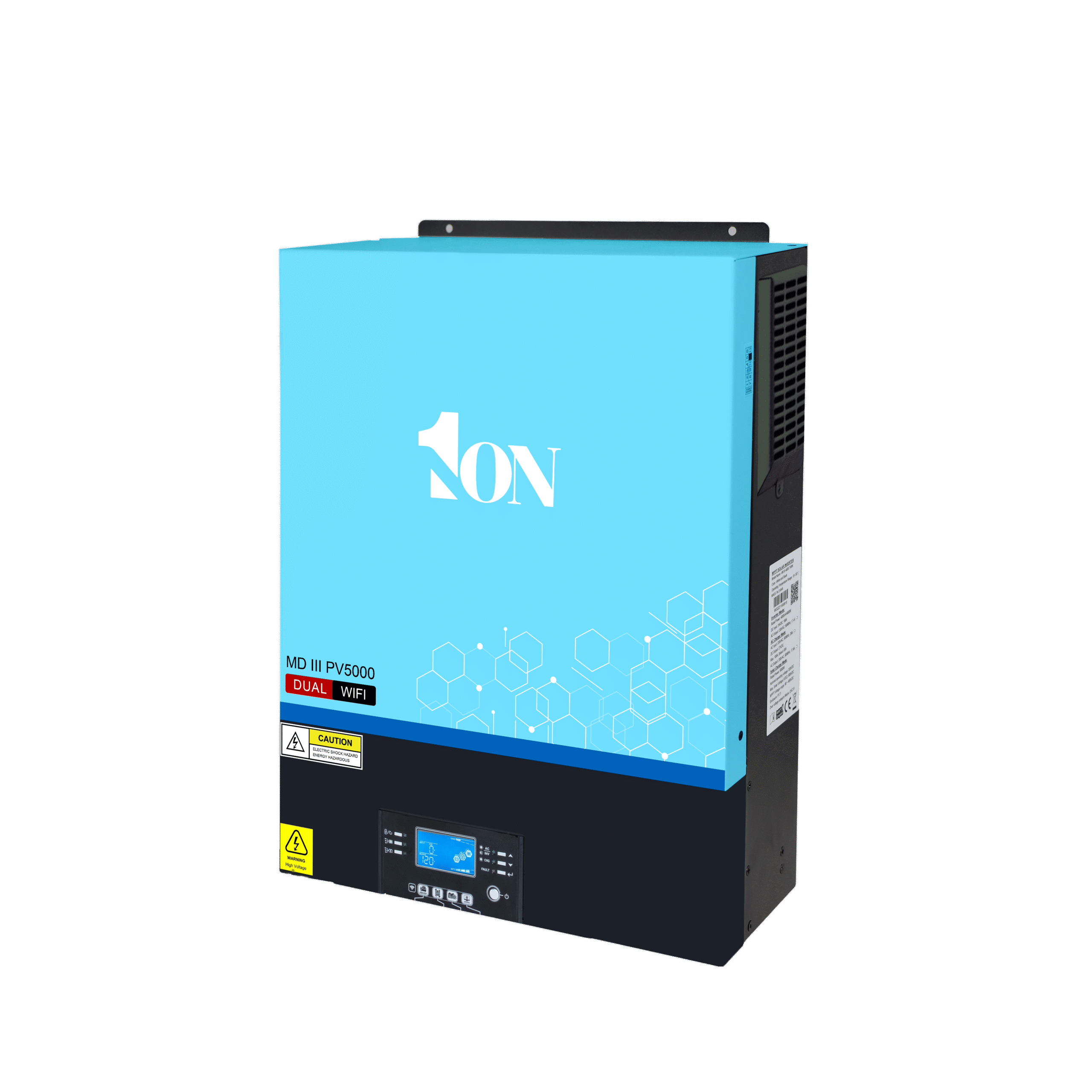

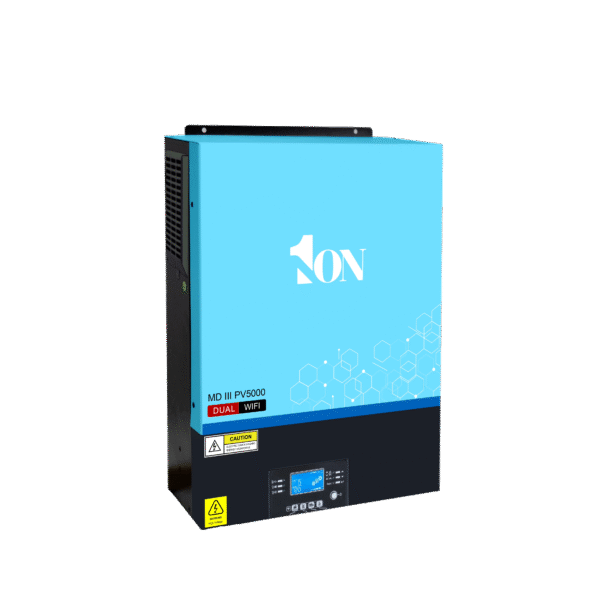

MD III 3.6 KW
Model: MD III 3.6 KW
Voltage: 230 VAC
Weight: 12 kg
Dimensions: 119 x 313.6 x 457.5 mm
