Description

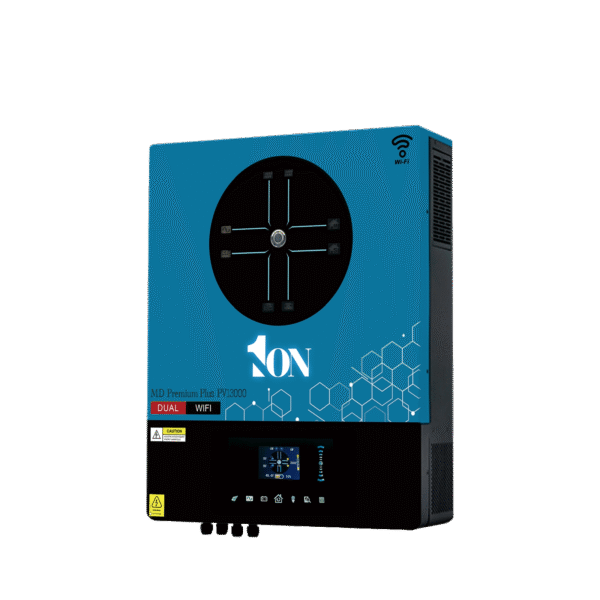

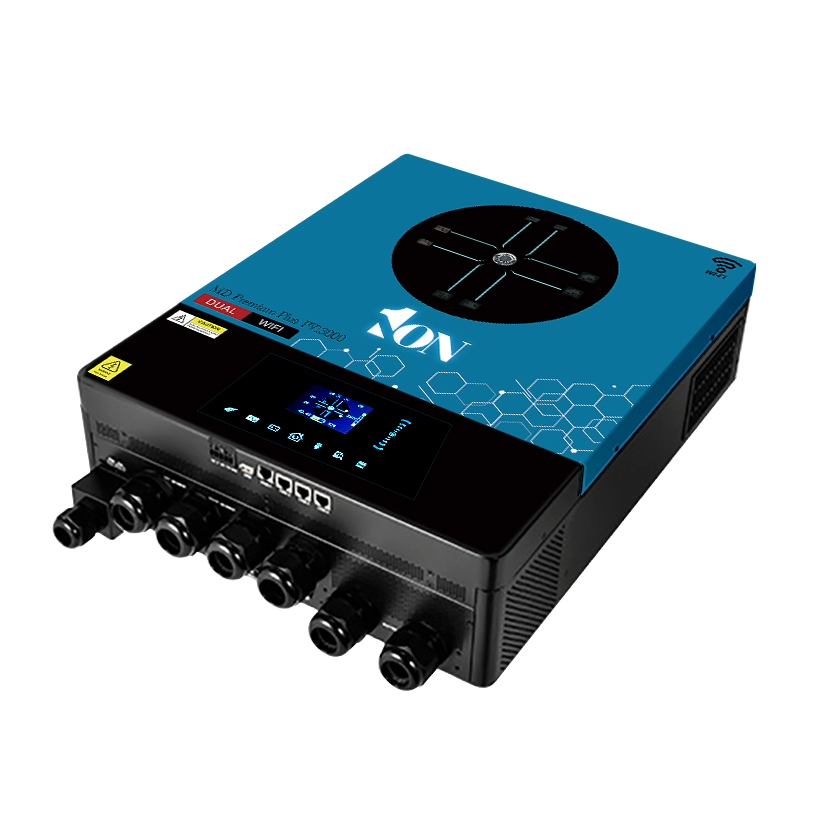

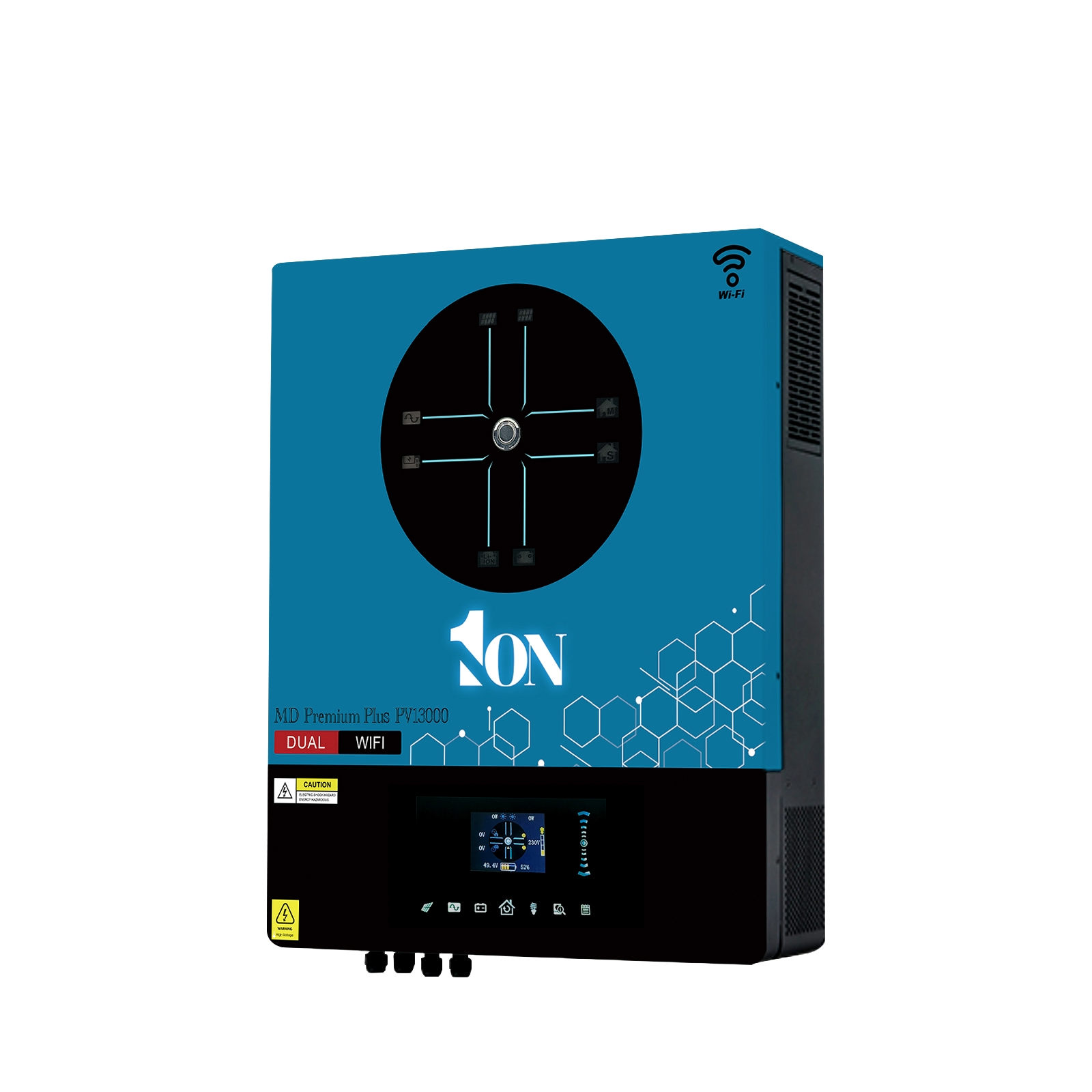

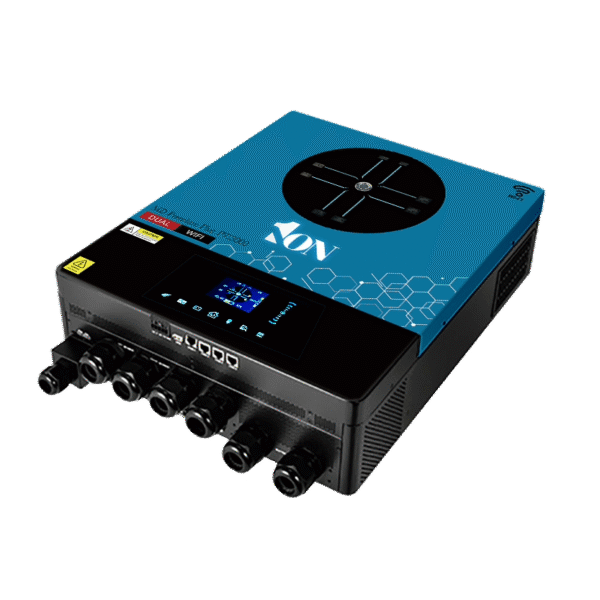

| MODEL | MD IV 5.6KW | ||
| Rated Power | 420OVA/4200W | ||
| INPUT | |||
| Voltage | 230 VAC | ||
| Selectable Voltage Range | 171-280 VAC (For Personal Computers)/90-280 vee AC For Home Appliances | ||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230VAC±10% | ||
| Surge Power | 84000VA | ||
| Efficiency (Peak) | 90%˜93% | ||
| Transfer Time | 10 ms (For Personal Computers)/20 ms (For Home Appliances) | ||
| Waveform | Pure sine wave | ||
| BATTERY | |||
| Battery Voltage | 48 VDC | ||
| Floating Charge Voltage | 54 VDC | ||
| Overcharge Protection | 63 VDC | ||
| SOLAR CHARGER & AC CHARGER | |||
| Solar Charger type | MPPT | ||
| Maximum PV Array Power | 4200W | ||
| MPP Range @ Operating Voltage | 60˜450VDC | ||
| Maximum PV Array Open Circuit Voltage | 500VDC | ||
| Maximum PV Input Current | 27A | ||
| Maximum Solar Charge Current | 120A | ||
| Maximum AC Charge Current | 100A | ||
| Maximum Charge Current | 120A | ||
| PHYSICAL | |||
| Dimension, D x W x H (mm) | 119 * 313.6 * 457.5 | ||
| Net Weight (kgs) | 12 | ||
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | ||
| ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature | -10°C to 59°C | ||
| Storage Temperature | -15°C to 60°C | ||
