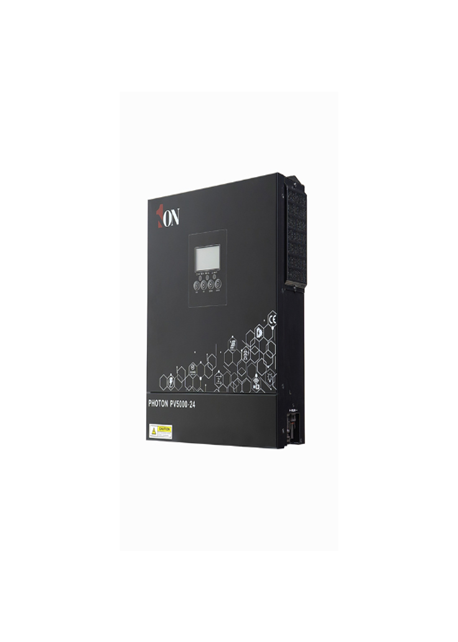

Photon 3.6 KW-PV5000-24

1oninverters > Products > Photon 3.6 KW-PV5000-24
Photon 3.6 KW-PV5000-24

Photon 3.6 KW-PV5000-24

Model: Photon 5000 24
Voltage: 230 VAC
Weight: 12 kg
Dimensions: 119 x 313.6 x 457.5 mm

1 ON Is The Future Of Solar Energy

The Photon Series PV5000-3.6KW Solar Hybrid Inverter is a highly efficient and smart energy solution designed for residential and small commercial use. With a rated capacity of 3.6KW and a maximum PV input of 5000W, it effectively converts solar energy into usable electricity. It features dual output for managing smart loads This inverter can operate with or without a battery and supports grid feed-in with backup storage. Built-in Wi-Fi allows for real-time monitoring via Android and iOS apps,

Category: Tags: , ,
Category Specification
MODEL PHOTON 3.6KW
Rated Power 3600VA / 3500W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170–280 VAC (For Personal Computers) 90–280 VAC (For Home Appliances)
Frequency Range 50 Hz / 60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230 VAC ±5%
Surge Power 7000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
No Load Power Consumption < 70W
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Max. PV Array Open Circuit Voltage 500 VDC
MPP Range @ Operating Voltage 30 ~ 450 VDC
Max. PV Array Power 5000W
Max. Solar Charge Current 100A
Max. AC Charge Current 80A
Max. Charge Current 100A
PHYSICAL
Dimension (DxWxH) (mm) 358 × 295 × 100
Net Weight (kgs) 8.2
Communication Interface RS232 / RS485
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
